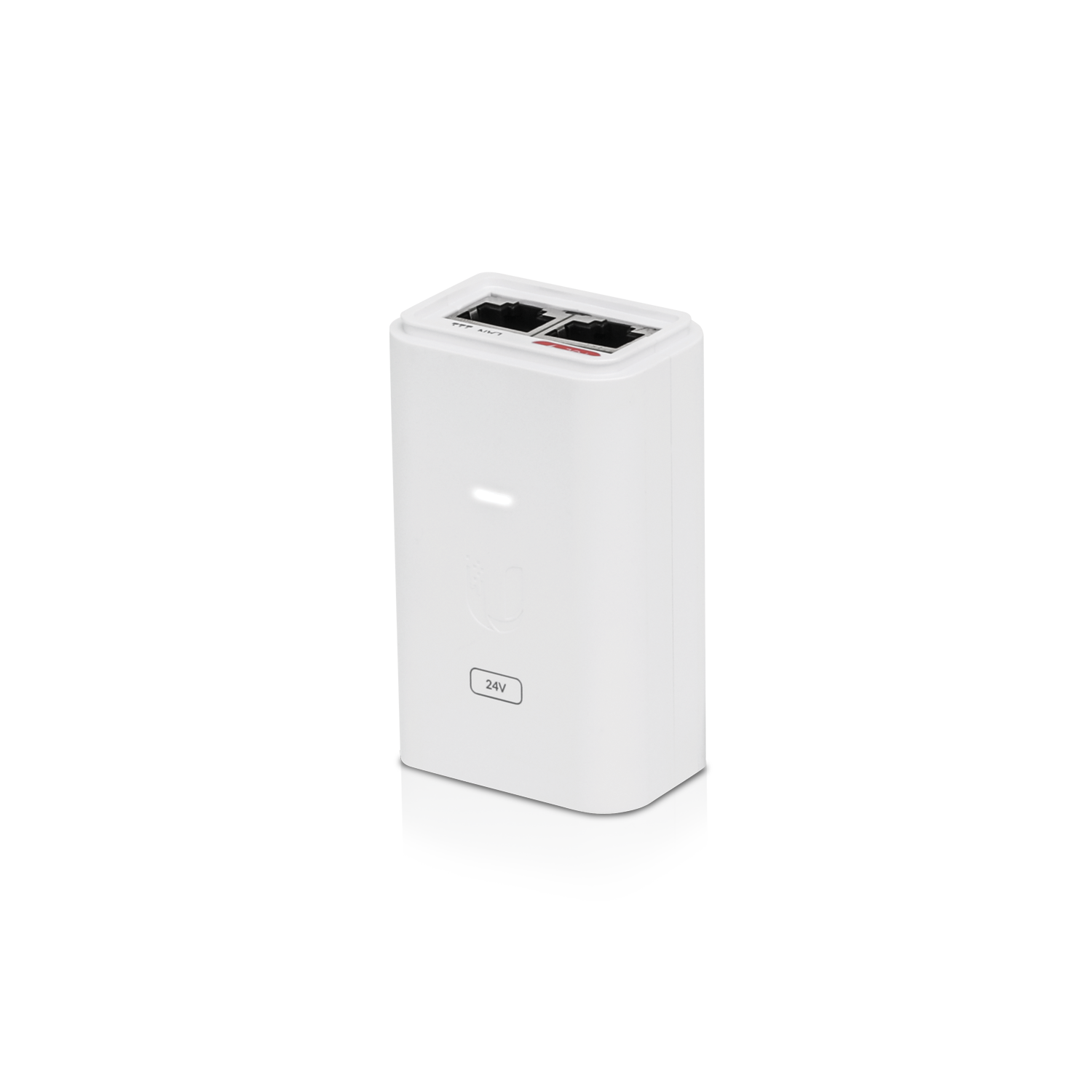

24V PoE Adapter 12W
R136.71
In stock: 45 available
Product Details
UPC: 00817882022002
Brand: Ubiquiti
| POE-24-7W-G-WH (Low-Power) | |
|---|---|
| Dimensions | 72 x 45 x 33 mm (2.8 x 1.8 x 1.3") |
| Weight | 72.1g (2.5 oz) |
| Output voltage | 24V DC @ 0.3A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes |
| Remote reset capability | Yes |
| Reset button | Yes |
| Rated voltage | 100-240V AC @ 50/60Hz |
| Input current | 0.3A @ 120V AC, 0.2A @240V AC |
| Inrush current | <40A peak @ 120V AC, <70A peak @ 230V AC |
| Efficiency | 80+% |
| Output ripple | 1% Max. |
| Switching frequency | 65 kHz |
| Line regulation | ≤ 3% |
| Load regulation | ≤ 5% |
| 2-pair powering | Pins 4, 5 (+) and pins 7, 8 (-) |
| 4-pair powering | – |
| Storage temperature | -30 to 70°C (-22 to 158°F) |
| Ambient operating temperature | 0 to 40°C (32 to 104°F) |
| Operating humidity | 35 to 95% noncondensing |
| AC connector | IEC-320 C6 |
| Data IN / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pf data |
| Response time | <1 ns |
| Certifications | CE, FCC, IC, UL |
| NDAA Compliant | Yes |
| POE-24-12W-G (Mid-Power) | |
| Dimensions | 87 x 44 x 29 mm (3.4 x 1.7 x 1.1") |
| Weight | 99 g (3.5 oz) |
| Output voltage | 24V DC @ 0.5A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes |
| Remote reset capability | Yes |
| Reset button | Yes |
| Rated voltage | 100-240V AC @ 50/60Hz |
| Input current | 0.3A @ 120V AC, 0.2A @ 240V AC |
| Inrush current | <30A peak @ 120V AC, <60A peak @ 230V AC |
| Efficiency | 75+% |
| Output ripple | 1% Max. |
| Switching frequency | 50 kHz |
| Line regulation | ≤ 3% |
| Load regulation | ≤ 5% |
| 2-pair powering | Pins 4, 5 (+) and pins 7, 8 (-) |
| 4-pair powering | - |
| Storage temperature | -30 to 70°C (-22 to 158° F) |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 35 to 95% noncondensing |
| AC connector | IEC-320 C6 |
| Data IN / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Certifications | CE, FCC, IC, UL |
| POE-24-24W-G (Hi-Power) | |
| Dimensions | 88 x 57 x 33 mm (3.5 x 2.2 x 1.3") |
| Weight | 159 g (5.6 oz) |
| Output voltage | 24V DC @ 1.0A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes |
| Remote reset capability | Yes |
| Reset button | Yes |
| Rated voltage | 100-240V AC @ 50/60Hz |
| Input current | 0.6A @ 120V AC, 0.4A @ 240V AC |
| Inrush current | <60A peak @ 120V AC, <120A peak @ 230V AC |
| Efficiency | 80+% |
| Output ripple | 1% Max. |
| Switching frequency | 65 kHz |
| Line regulation | ≤ 3% |
| Load regulation | ≤ 5% |
| 2-pair powering | Pins 4, 5 (+) and pins 7, 8 (-) |
| 4-pair powering | - |
| Storage temperature | -30 to 70°C (-22 to 158° F) |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 35 to 95% noncondensing |
| AC connector | IEC-320 C6 |
| Data IN / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Certifications | CE, FCC, IC, UL |
