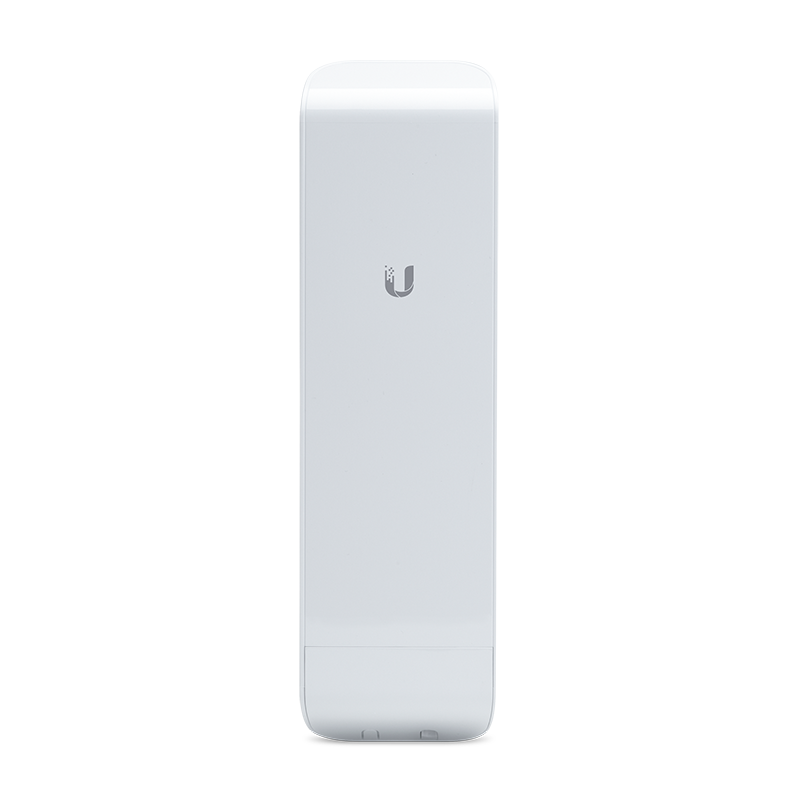

airMAX NanoStation M5 NSM5
R1 172.74
On Sale
was R1 414.91 Save 17%
In stock: 11 available
Product Details
UPC: 00810354022548
Brand: Ubiquiti
| Hardware | |
|---|---|
| Dimensions | 294 x 31 x 80 mm (11.6 x 1.3 x 3.2") |
| Weight | 400 g (14.1 oz) |
| Enclosure material | Outdoor UV-stabilized plastic |
| Mounting | Pole-mount (Kit included) |
| Hardware | |
| Networking interface | (2) 10/100 MbE RJ45 ports |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A PoE adapter (Included) |
| Supported voltage range | 22–27V DC |
| Max. power consumption | 8W |
| Ambient operating temperature | -30 to 75° C (-22 to 167° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Shock & vibration | ETSI300-019-1.4 |
| Certifications | FCC, ICC, CE, RoHS |
| NDAA Compliant | Yes |
| System | |
| Frequency | 5 GHz |
| Operating frequency Worldwide USA USA DFS |
5170-5875 MHz 5725-5850 MHz 5250-5850 Mhz |
| Gain | 14.6-16.1 dBi |
| Cross-pol isolation | 22 dB Min. |
| Max. VSWR | 1.6:1 |
| Beamwidth | 43° (H-pol) / 41° (V-pol) / 15° (Elevation) |
| Polarization | Dual Linear |
