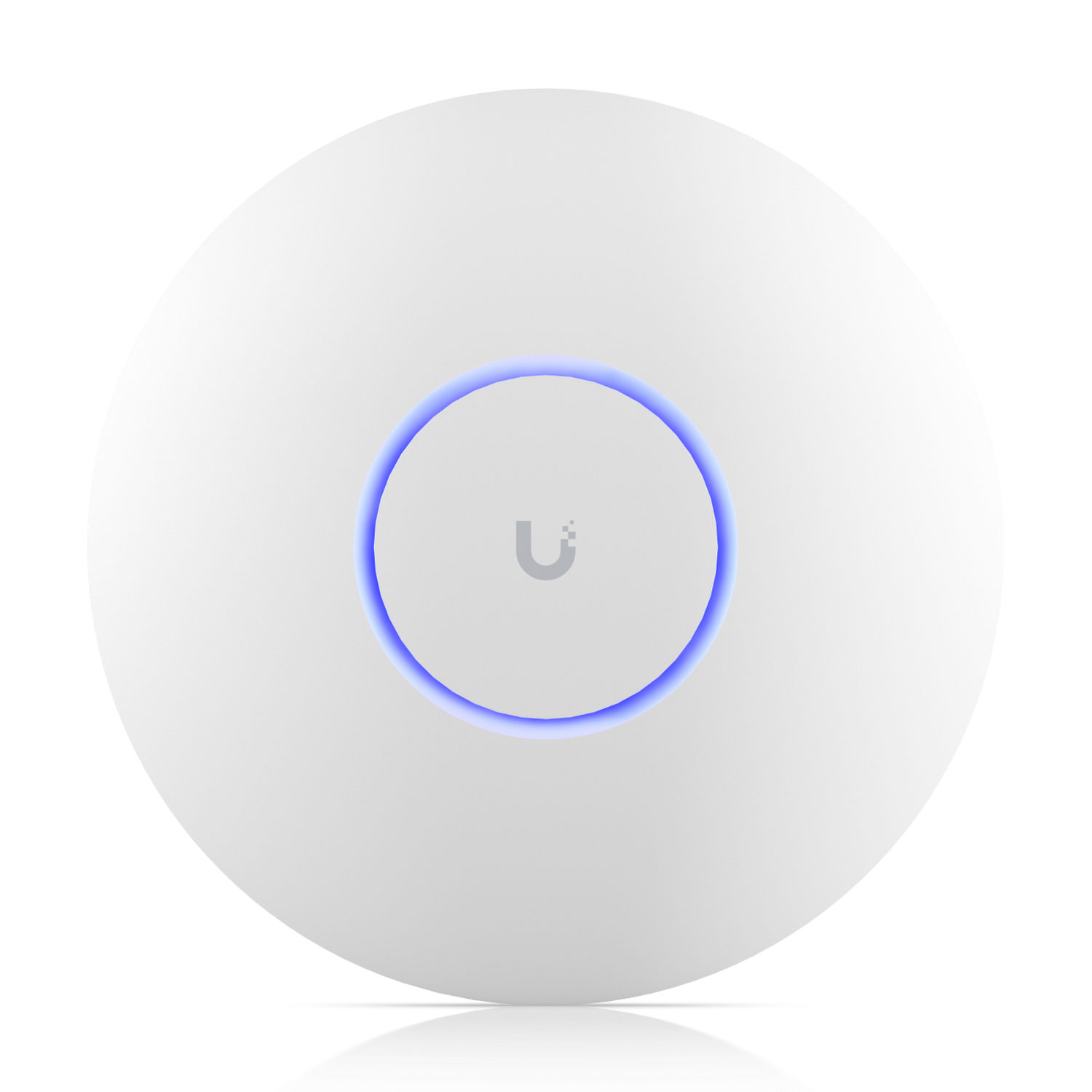

U6-Pro
R3 117.39
In stock: 77 available
Product Details
UPC: 00810010076830
Brand: Ubiquiti
Overview
Dimensions
Ø197 x 35 mm
(Ø7.8 x 1.4")
WiFi Standard
WiFi 6
Spatial Streams
6
Coverage Area
140 m² (1,500 ft²)
Max. Client Count
350+
Uplink
GbE
Mounting
Ceiling, Wall
(Pro Mount Included)
Weatherproofing
IP54
Power Method
PoE
Performance
MIMO
5 GHz
4 x 4 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (UL MU-MIMO)
Max. Data Rate
5 GHz
4.8 Gbps (BW160)
2.4 GHz
573.5 Mbps (BW40)
Antenna Gain
5 GHz
6 dBi
2.4 GHz
4 dBi
Max. TX Power
5 GHz
26 dBm
2.4 GHz
22 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
Features
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓
Hardware
Max. Power Consumption
13W
Supported Voltage Range
44—57V DC
Networking Interface
(1) GbE RJ45 port
Weight
Device: 580 g (1.3 lb)
With mount: 720 g (1.6 lb)
Management
Ethernet
Bluetooth
Enclosure Material
Polycarbonate
Mount Material
Stainless steel (SUS304)
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel, SRRC
Operating Frequency
US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 6.0.45 and later
