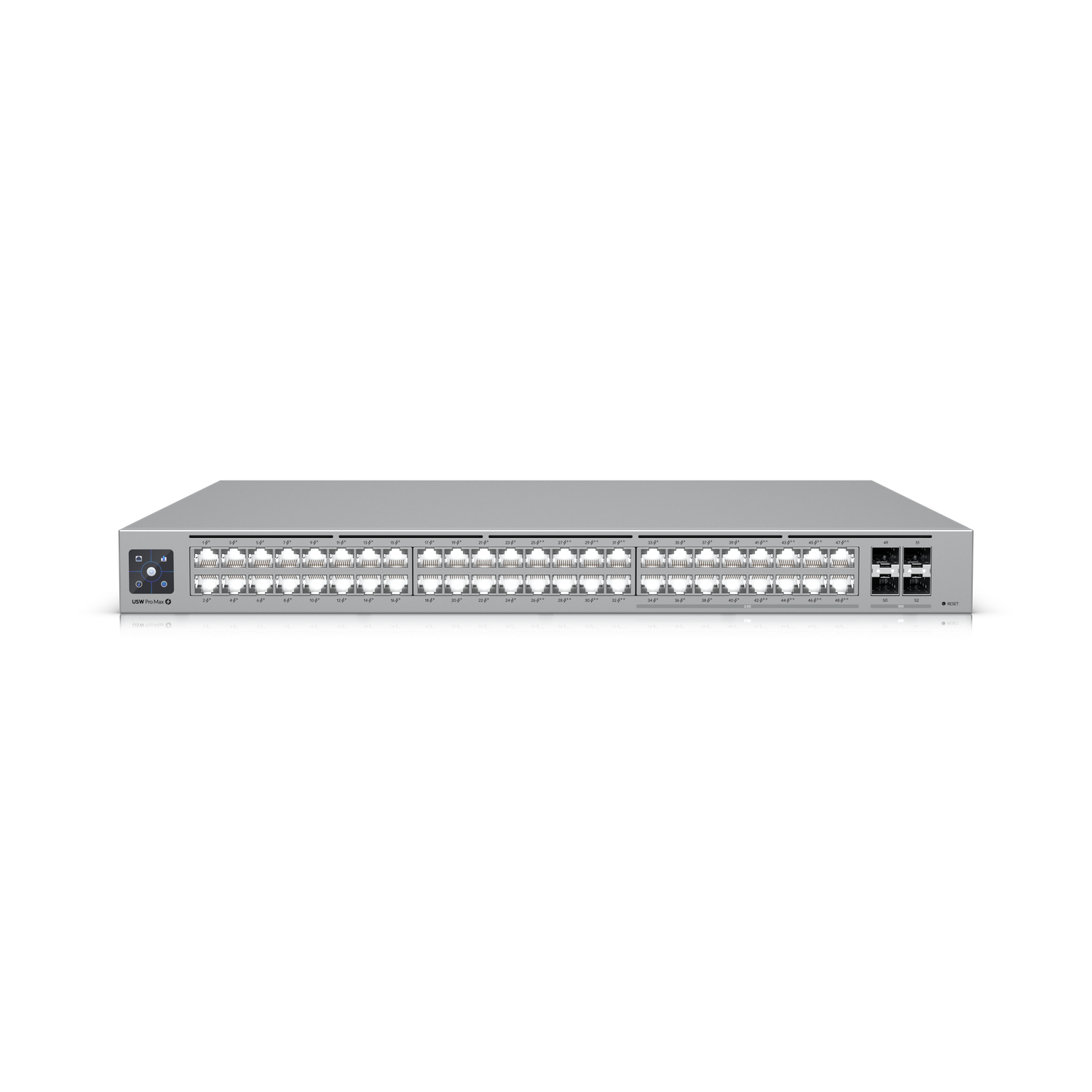

UniFi Pro Max Switch 48 USW-PRO-MAX-48-POE
R22 624.57
In stock: 34 available
Product Details
UPC: 00810084692721
Brand: Ubiquiti
Features
- Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- 16x 2.5 GbE ports including 8x PoE+ and 8x PoE++
- 32x GbE ports including 24x PoE+ and 8x PoE++
- 4x 10G SFP+ ports
- DC power backup ready
- 720W total PoE availability
- Managed with UniFi Network 8.0.24 and later
Technical Specification
Management interface: Ethernet In-Band
Networking interface
Networking interface
-
32x GbE RJ45 ports
-
16x 1/2.5 GbE RJ45 ports
-
4x 10G SFP+ ports
PoE interface
-
32x PoE/PoE+ (Pins 1, 2+; 3, 6 -)
-
16x 60W PoE++ (Pair A 1, 2+; 3, 6 -) (Pair B 4, 5+; 7, 8 -)
Total non-blocking throughput: 112 Gbps
Switching capacity: 224 Gbps
Forwarding rate: 166.656 Mpps
Power method
Switching capacity: 224 Gbps
Forwarding rate: 166.656 Mpps
Power method
-
1x Universal input, 100—240V AC, 50/60 Hz
-
1x USP-RPS DC input
Power supply: AC/DC, internal, 820W
Supported voltage range: 100—240V AC
Max. power consumption: 100W (Excluding PoE output)
Supported voltage range: 100—240V AC
Max. power consumption: 100W (Excluding PoE output)
Total available PoE: 720W
Max. PoE wattage per port by PSE
Max. PoE wattage per port by PSE
-
PoE: 15.4W
-
PoE+: 30W
-
PoE++: 60W
Voltage range PoE mode
-
PoE: 44—57V
-
PoE+: 50—57V
LCM display: 1x 1.3" touchscreen
Etherlighting
Ethernet
-
Locating
-
Speed/link
-
Native VLAN/network
SFP+
-
Locating
-
Speed/link
-
Native VLAN/network
