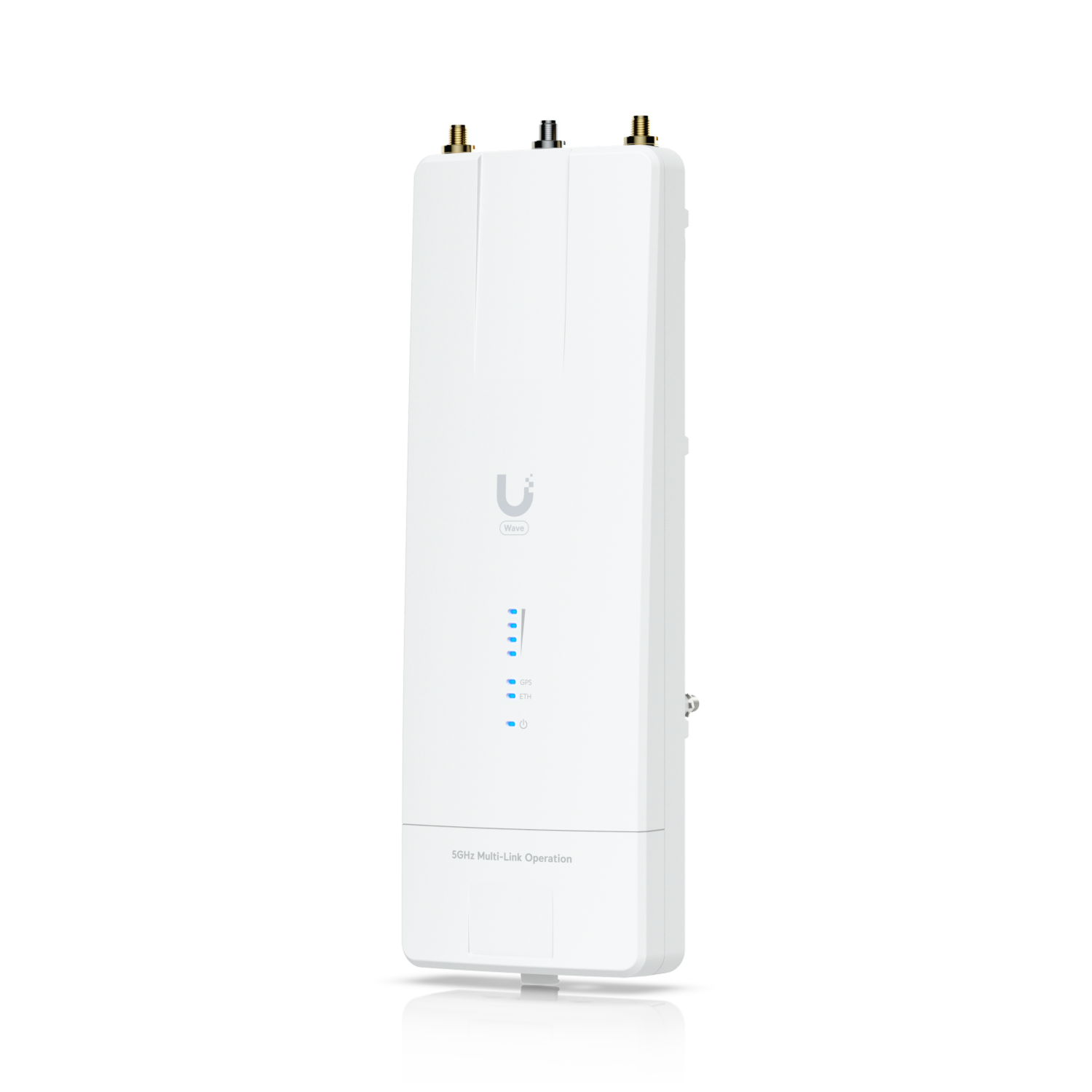

WAVE-MLO5
R10 382.86
In stock: 32 available
Product Details
UPC: 00810084699218
Brand: Ubiquiti
| Mechanical | |
|---|---|
| Dimensions | 249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9") |
| Weight | 575 g (1.3 lb) |
| Enclosure material | Aluminum alloy, UV-resistant polycarbonate |
| Mount material | Strap: stainless metal Universal bracket: UV-resistant polycarbonate |
| Pole mount diameter | 25.4 to 50.8 mm (1 to 2") on pipe outer diameter |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core IPQ5322 at 1.5 GHz |
| Memory | DDR4 1 GB |
| Networking interface | (1) 10 GbE RJ45 port (1) 10G SFP+ port |
| RF connectors | (2) RP-SMA (Waterproof) (1) GPS (Waterproof) |
| Max. power consumption | 20W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8 -) Passive PoE 2-pairs (4, 5+; 7, 8 -), for 44–54V DC only |
| Power supply | 54V DC, 0.56A, 10 GbE PoE adapter (Included) |
| Supported voltage range | 44–54V DC 22–27V DC |
| Max. TX power* 5 GHz |
24 dBm *Depends on regulatory region. |
| MIMO 5 GHz |
(2) 2 x 2 |
| GPS | Yes |
| Button | (1) Factory reset |
| LEDs | (1) Power, (1) Ethernet, (1) GPS, (4) signal |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| Software | |
| Operating mode | PtP |
| Services | UISP, ping watchdog, NTP client |
| Tools | Alignment, speed test, ping, traceroute, discovery, site survey |
| Network | Bridge mode |
| Total throughput | 5+ Gbps |
| Max. range* | 100 km *Throughput and range values may vary depending on the environmental conditions. |
| Encryption | WPA3-PSK (AES) |
| RF | |
| Operating frequency* | 5180 – 5320, 5500 – 5700, 5745 – 5825 MHz *Depends on regulatory region. |
| Channel bandwidth | Radio 1: 20, 40, 80, 160 MHz Radio 2: 20, 40, 80, 160, 240 MHz |
| Modulation | BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (⅔), 64QAM (¾), 64QAM (⅚), 256QAM (¾), 256QAM (⅚), 1024QAM (¾), 1024QAM (⅚), 4096QAM (¾), 4096QAM (⅚) |
